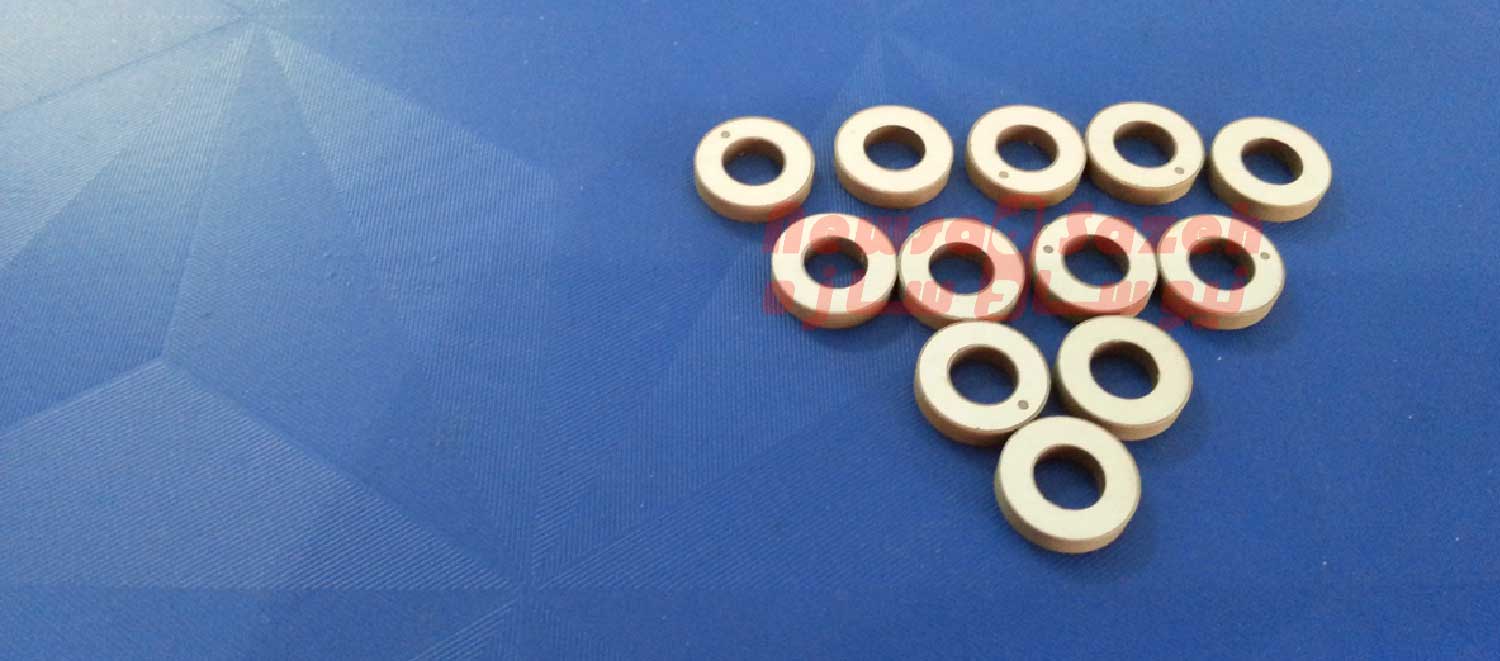

مشخصات رینگ های سرامیکی پیزوالکتریک:
|
spec |
Dimension |
Radial frequency |
Capacitance |
Dielectric dissipation factor |
Electromechanical coupling coefficient |
Impedance |
Thickness frequency |
Mechanical |
|
NS-25103 |
Φ25×Φ10×3 |
66.4 |
1240±12.5% |
≤0.3 |
≥0.46 |
≤15 |
683±5% |
800 |
|
NS-225104 |
Φ25×Φ10×4 |
66.4 |
930±12.5% |
≤0.3 |
≥0.46 |
≤15 |
512±5% |
800 |
|
NS-40155 |
Φ40×Φ12×5 |
45.9 |
2070±12.5% |
≤0.3 |
≥0.46 |
≤15 |
410±5% |
800 |
|
NS-40155 |
Φ40×Φ15×5 |
42.2 |
1960±12.5% |
≤0.3 |
≥0.46 |
≤15 |
323±5% |
500 |
|
NS-40176 |
Φ40×Φ17×6 |
40.5 |
1555±12.5% |
≤0.3 |
≥0.46 |
≤15 |
341±5% |
800 |
|
NS-40205 |
Φ40×Φ20×5 |
37.9 |
1700±12.5% |
≤0.3 |
≥0.47 |
≤15 |
410±5% |
800 |
|
NS -50206 |
Φ50×Φ20×6 |
33.2 |
2490±12.5% |
≤0.3 |
≥0.46 |
≤15 |
341±5% |
500 |
|
NS -501765 |
Φ50×Φ17×6.5 |
34.8 |
2430±12.5% |
≤0.3 |
≥0.46 |
≤15 |
315±5% |
800 |
|
NS -50236 |
Φ50×Φ23×6 |
31.2 |
2340±12.5% |
≤0.3 |
≥0.47 |
≤15 |
341±5% |
800 |
|
NS -50276 |
Φ50×Φ27×6 |
29.3 |
2100±12.5% |
≤0.3 |
≥0.47 |
≤15 |
341±5% |
800 |
|
NS -603010 |
Φ60×Φ30×10 |
25.3 |
1922±12.5% |
≤0.3 |
≥0.47 |
≤18 |
205±5% |
800 |
